•용량 :
1.25 Ton •동작 :
상, 하 •양정 : 4M ~
100M •체인 : Ø7.1 ×
21P × 1줄 •권상 SLIP CLUTCH 부착, 산업안전 검사 품목

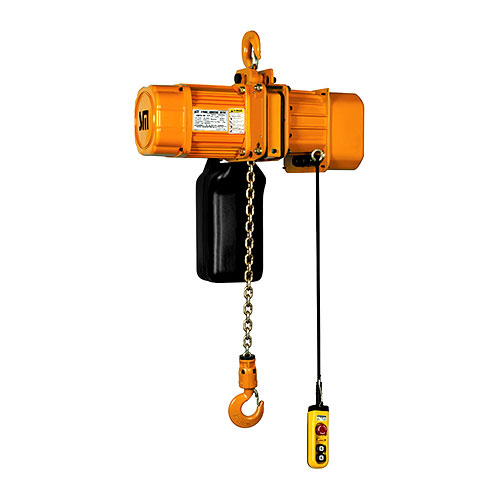

SCO-1250
MODEL
SCO-S(D)1250 / 2점식
HOISTING LOAD
1.25 TON
TESTING LOAD
1.56 TON
LIFTING HEIGHT
MIN.
3M ~ MAX. 50 M
HOISTING
SINGLE
SPEED
7.0 M/MIN
MOTOR
2.0 Kw x 4P
DUAL
SPEED
7.0 / 3.5 M/MIN
MOTOR
2.0
/ 1.0 Kw x 4/8P
POWER SUPPLY
3Ø, 220V~575V, 60Hz
1Ø, 110V~230V, 60Hz
CONTROL VOLTAGE
1Ø, 48V, 110V, 60Hz
OPERATING METHOD
PUSH BUTTON TYPE
LOAD CHAIN SPEC.
Ø7.1
x 21P x 1 FALLS
WIDTH OF BEAM
100~150 MM
RADIUS OF BEAM
MIN. 1500 MM
RATING
30 MIN
NET WEIGHT
APPROX MIN. 68KG~MAX. 167KG

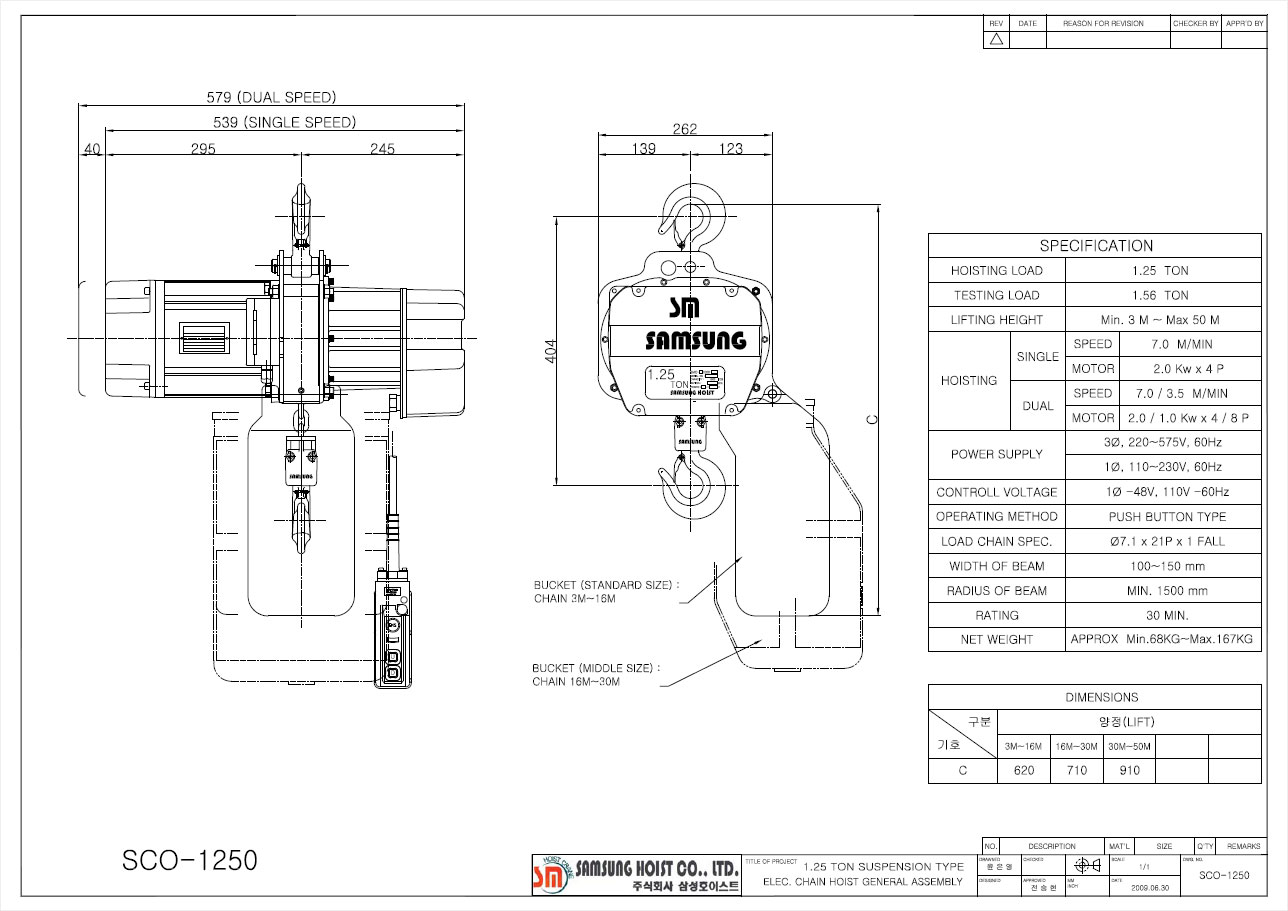

기호
양정(LIFT)
C
3M~16M
16M~30M
30M~50M
620
710
910
